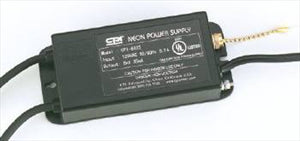

The best transformer on the market. Automatic self adjusting neon power supply from 2,000vts to 6,000vts
Self adjusting load sensor automatically adjusts from minimum to maximum output.
Overload Protection / Auto shutdown feature
Can be mounted directly to metal.
UL LISTED 2161, Complies with all FCC regulations.
Reduced energy consumption.
No mercury migration. Weight: 1.5 lbs.
Output: 6000 volts, 35mA
Input voltage: 120VAC
20" GTO cable; 6 foot power cord; on/off pull chain
Warranty: Two years.
5 1/2"L x 2 1/2"W x 1 1/2"H
Built in protection circuit will activate and shutdown the power supply if unit is overloaded.
This power supply unit is for INDOOR USE. (May be used for outdoor applications if mounted in metal weatherproof enclosure/box.)
This unit can be installed on either metallic or non-metallic surfaces.
Always provide adequate ventilation to power supply.
Keep overall length of GTO leads under 6 feet (2m).
Always keep a minimum of 1 inch between GTO leads and any metallic surfaces.
When using multiple power supplies on one sign, be sure to keep at least 3 inches between each unit.
Never cross GTO leads.
Never run GTO leads across the power supply.
Keep GTO leads as equal in length as possible.
Always keep installation in conformity with all local electric codes.
Modification of any type including cutting/removing of AC cord, tampering with on/off switch or tampering with casing will void any existing product warranty. NO EXCEPTIONS.
